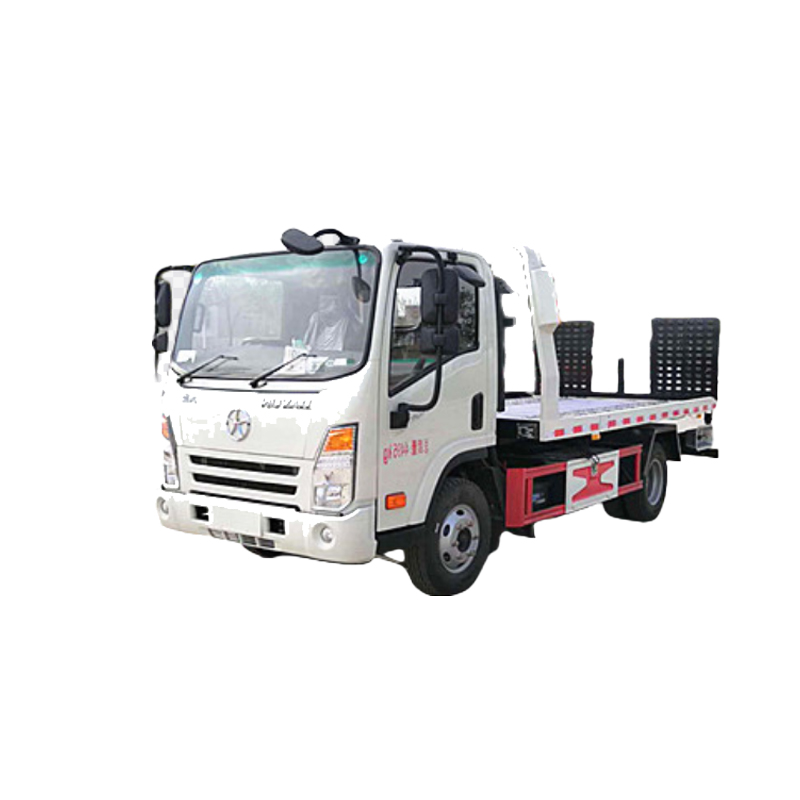

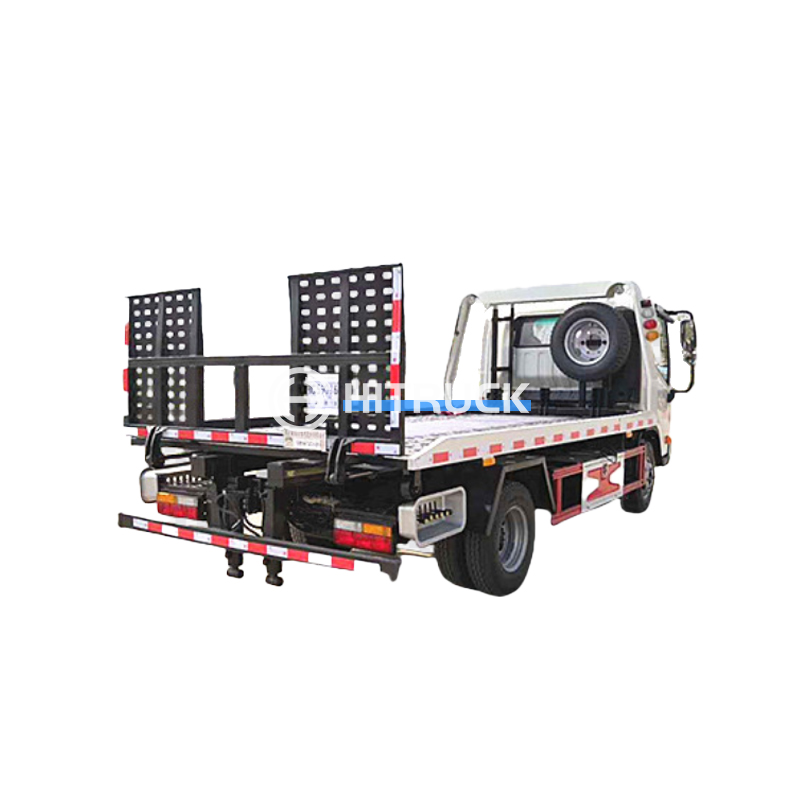

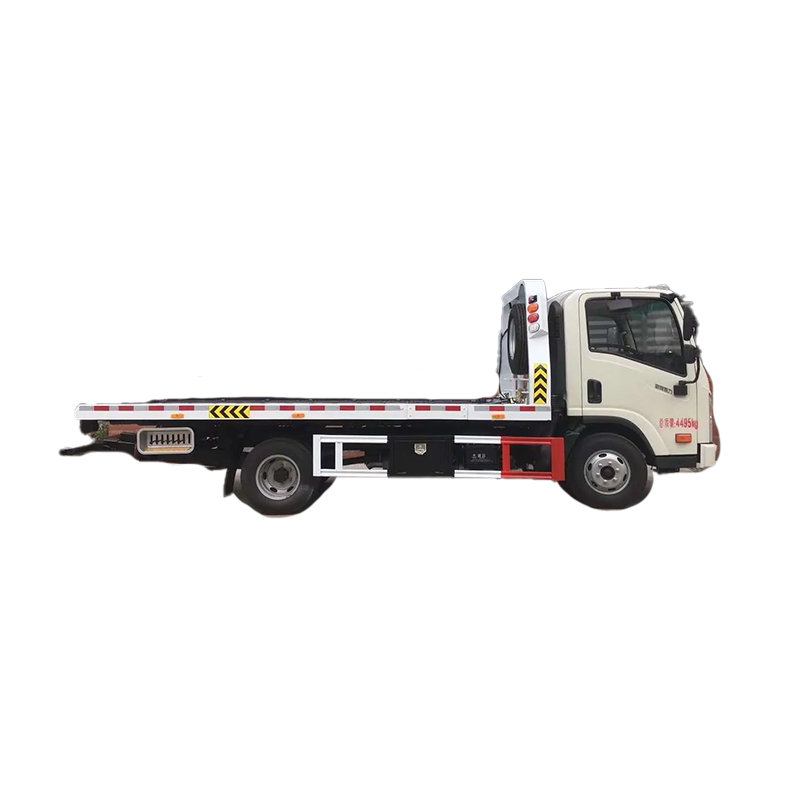

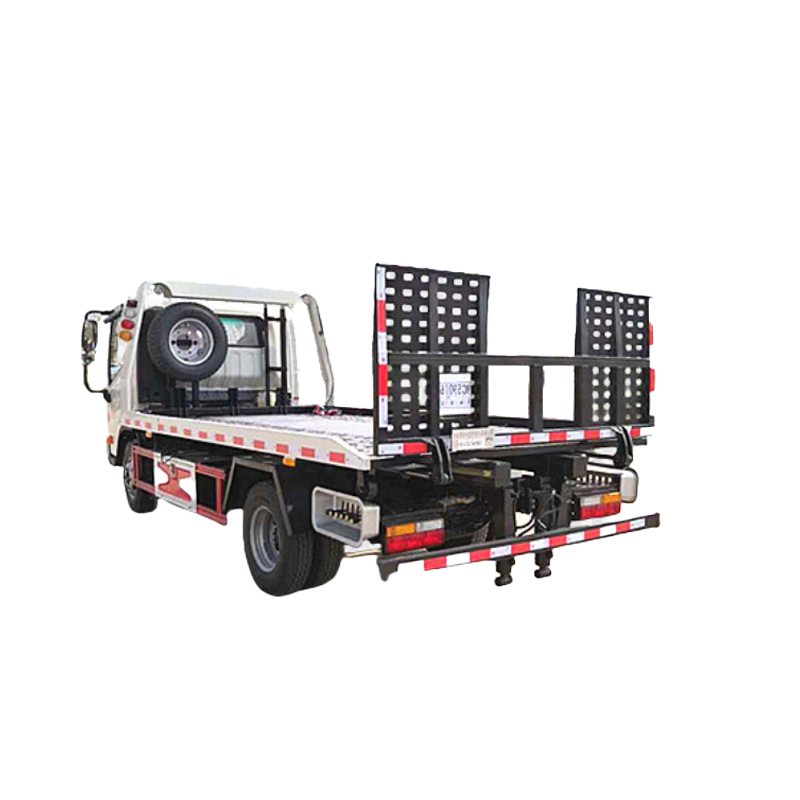

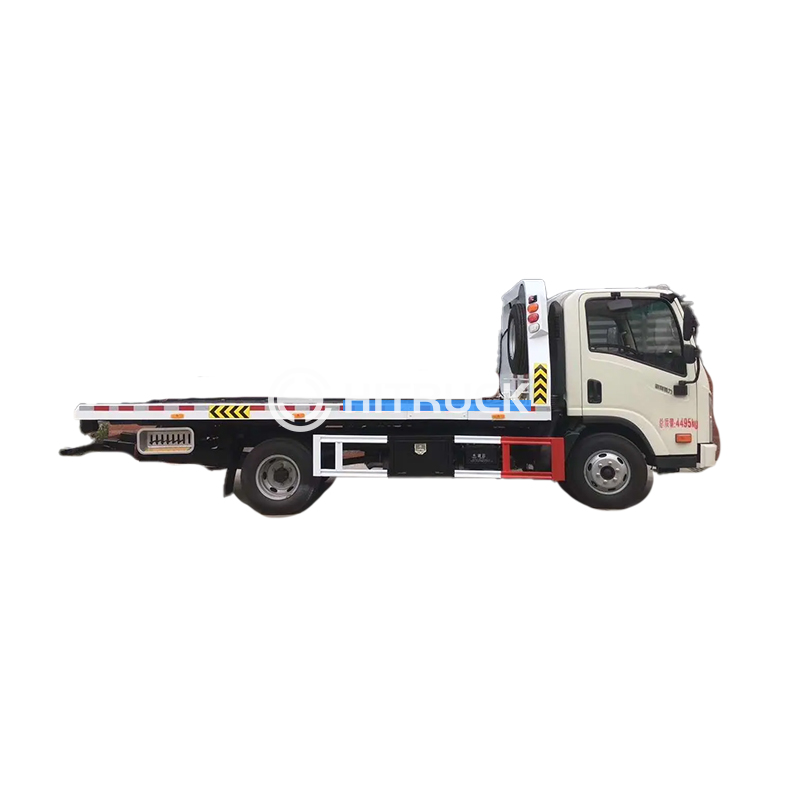

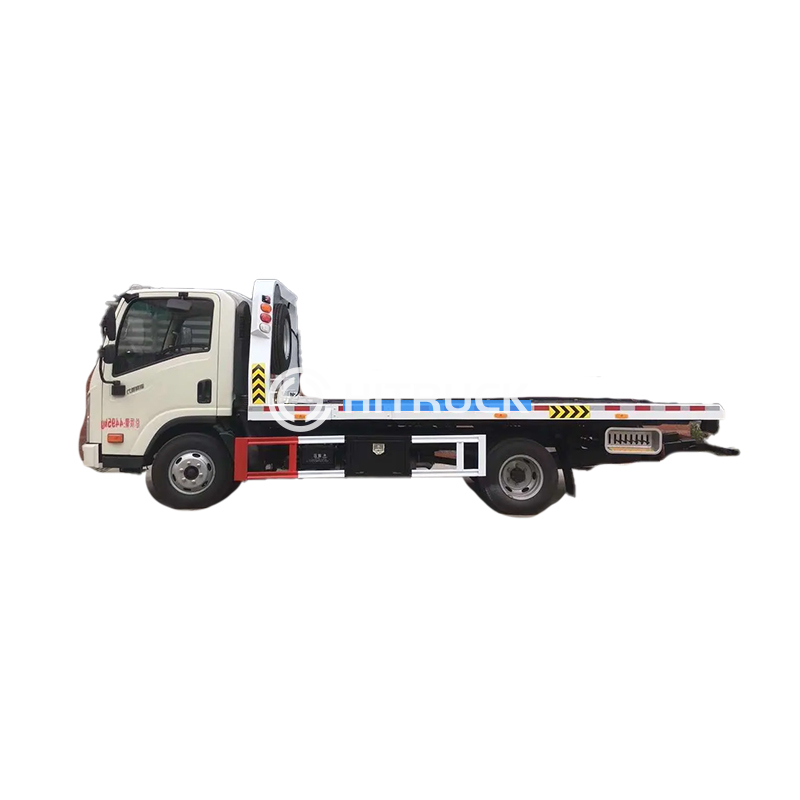

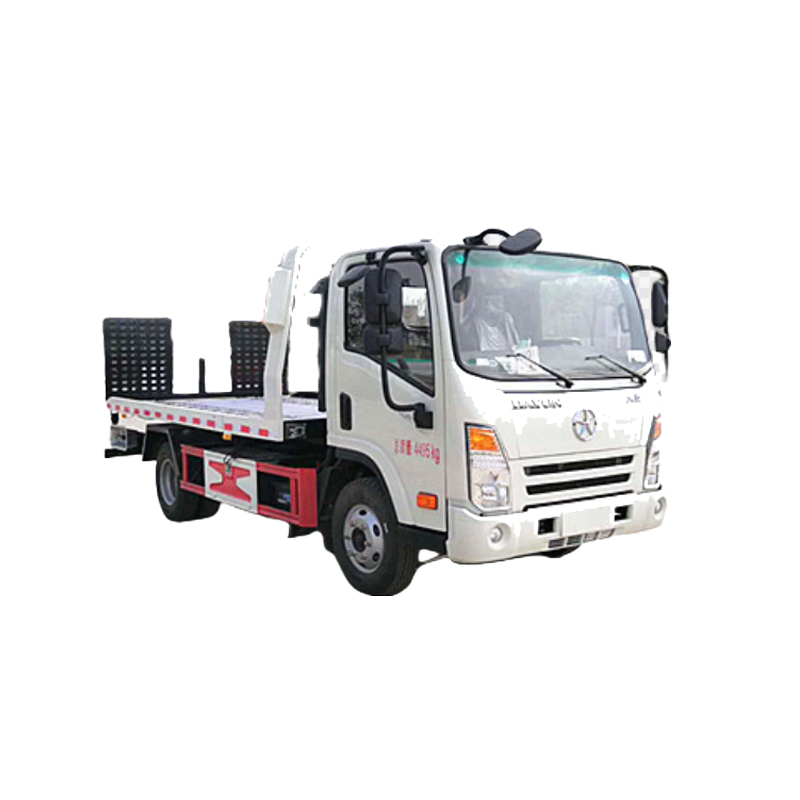

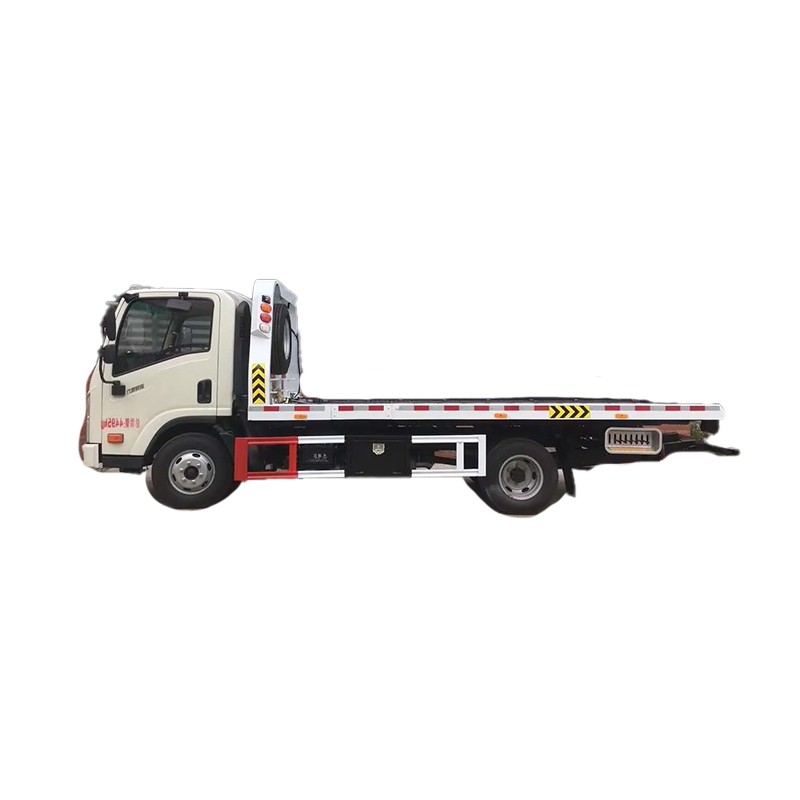

Dayun Blue wrecker

Dayun Blue wrecker is also called rescue trailer, Dayun wrecker, blue wrecker, national five emissions, chassis provided by Chengdu Dayun Automobile Group Co., LTD., there are two configurations :1835 single row luxury cab (file good 840), Sino-German joint venture Yunnedevi D25 engine 142 hor...

Send request

 

Description

marker

Dayun Blue wrecker is also called rescue trailer, Dayun wrecker, blue wrecker, national five emissions, chassis provided by Chengdu Dayun Automobile Group Co., LTD., there are two configurations :1835 single row luxury cab (file good 840), Sino-German joint venture Yunnedevi D25 engine 142 horsepower, Wanliyang six speed with overspeed transmission, Front and rear axle 1058(3 tons)/1059(5 tons),7.00R16 steel tires, air brake, with directional power, with ABS, urea, electric car. 180x5 Large frame. [995 single row luxury cab (file good 865), Sino-German joint venture Yunnei VN38CRE1(130 HP) engine, Wan Li Yang six speed with overspeed transmission, front and rear axle 1058(3 tons)/1068(6 tons)7.50R16 steel wire tires, air brake, with direction help, with ABS, urea tank, electric Windows. 180x5 Large frame. It is equipped with a 4-ton winch, with 20 meters thick steel wire rope, and adopts an anti-skid plate, the board length is 4.2 meters, the rated load is 3T, the hydraulic flip tail plate is 1 meter long, and the rated lift of the rear bracket arm is 1.8 ";4 straps, one long warning light, one calling microphone, one alarm, the steel of the whole vehicle is Wusteel, the front of the plate has a limit, the rear bracket arm has anti-theft function, and the operation is double-sided linkage

Main technical parameters

Product trademark	Dayun Blue wrecker	Announcement batch	295
Product name	Dayun Blue wrecker	Product model	ZME3M5FS03S
Total weight (Kg)	4495	Service weight (Kg)	3950
Cab capacity (persons)	3,2	Overall dimensions (mm)	5998x2300x2350
Approach Angle/Departure Angle (°)	20/15	Front/rear suspension (mm)	1150/1548
Number of axles	2	Wheelbase (mm)	33,003,550
Axle load (Kg)	1800/2695	Maximum speed (Km/h)	90

Chassis technical parameters

Chassis type	CGC1042HDE33E	Chassis name	Truck chassis (Class II)
Trade name	Big Luck card	Manufacturing enterprise	Chengdu Dayun Automobile Group Co., LTD
Overall dimensions (mm)	5610,5810x2160，2060,2430x2350	Number of tires	6
Approach Angle/Departure Angle (°)	20/24,20/24,20/26,20/27	Wheel specification	7.5OR16 SFR, SFR,7.00-16 BFR,7.0
Number of leaf spring pieces	9/9+6,9/11+8,4/3+3,9/3+3,4/9+63/3+3	Front wheel base (mm)	1665,1740,1770,1590,1804,1840,18-33
Ttype of fuel	Diesel	Rear wheel base (mm)	1650，1700，1540，1790，1811.1900，1835，1888,1860
Emission standard	GB17691-2005 China V / Europ V
