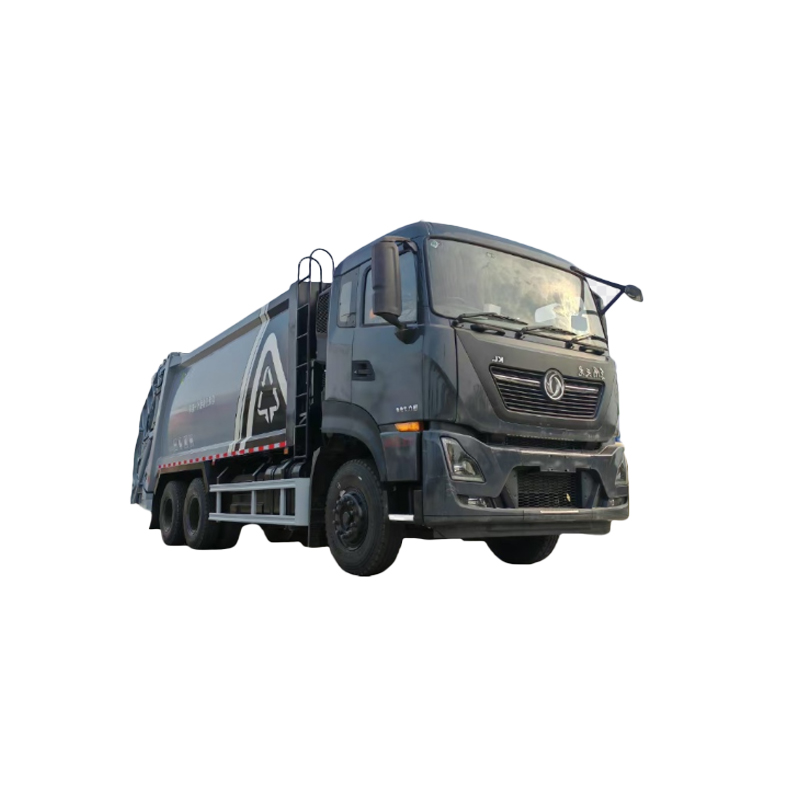

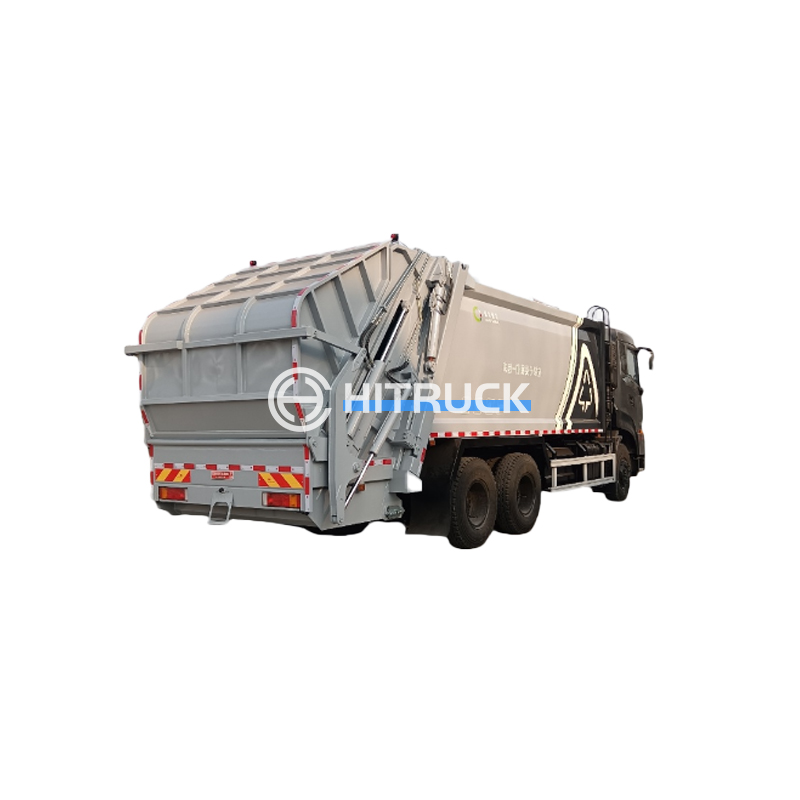

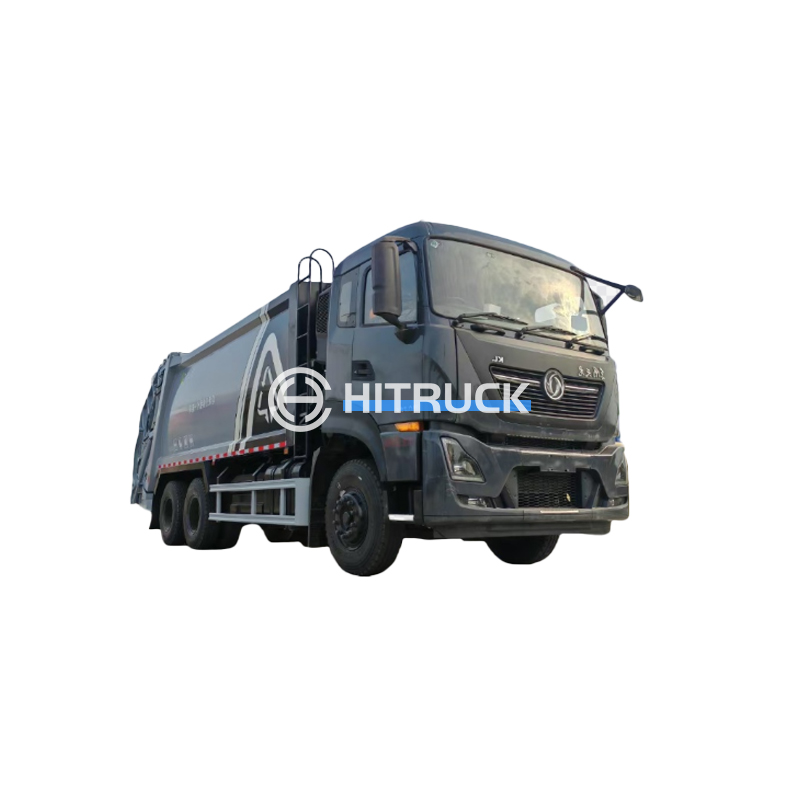

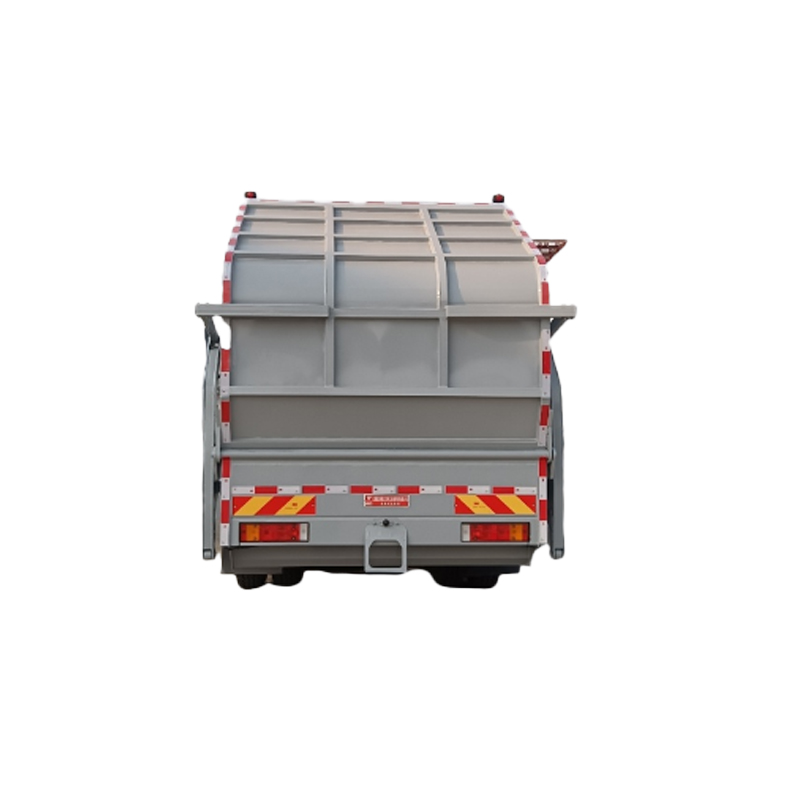

Model：GTY5140ZYS6 Chassis type：DFH1250D4 Axis pitch：4350+1350mm Engine：Commins 290hp total mass：25000kg Service weight (kg)：15300，15750kg Rated mass (kg)：9570，9505，9120，9055kg Overall dimensions (mm)：10030，10230，10430×2500，2530，2550×3450mm Volume：22m3 Chassis configuration : D...
Model：GTY5140ZYS6
Chassis type：DFH1250D4
Axis pitch：4350+1350mm
Engine：Commins 290hp
total mass：25000kg
Service weight (kg)：15300，15750kg
Rated mass (kg)：9570，9505，9120，9055kg
Overall dimensions (mm)：10030，10230，10430×2500，2530，2550×3450mm
Volume：22m3
Dongfeng Company DFH1250D4 chassis, row half cab, Cummins 290 horsepower, Shaanxi gear 9-speed transmission, clutch power, air bag cushion-absorbing seat, original factory air conditioning, ABS.
Adopt Q345 manganese steel high-strength plate curved box, side 5 bottom 6, by the body, charging mechanism, compression mechanism, discharge mechanism, oil pump, oil cylinder, control valve and other hydraulic mechanism. The charging mechanism is composed of bracket, connecting rod mechanism, CAM, hook, etc., and bidirectional peristaltic compression. Domestic well-known brand hydraulic system (Anhui Anhui liquid pump, Hunan Changsha domestic well-known multi-way valve, compression special custom cylinder, Zhejiang Jiashan force extractor); Centralized electronic control system of the same type CAN bus in the cab and outside the body; Body high profile light side light working light
