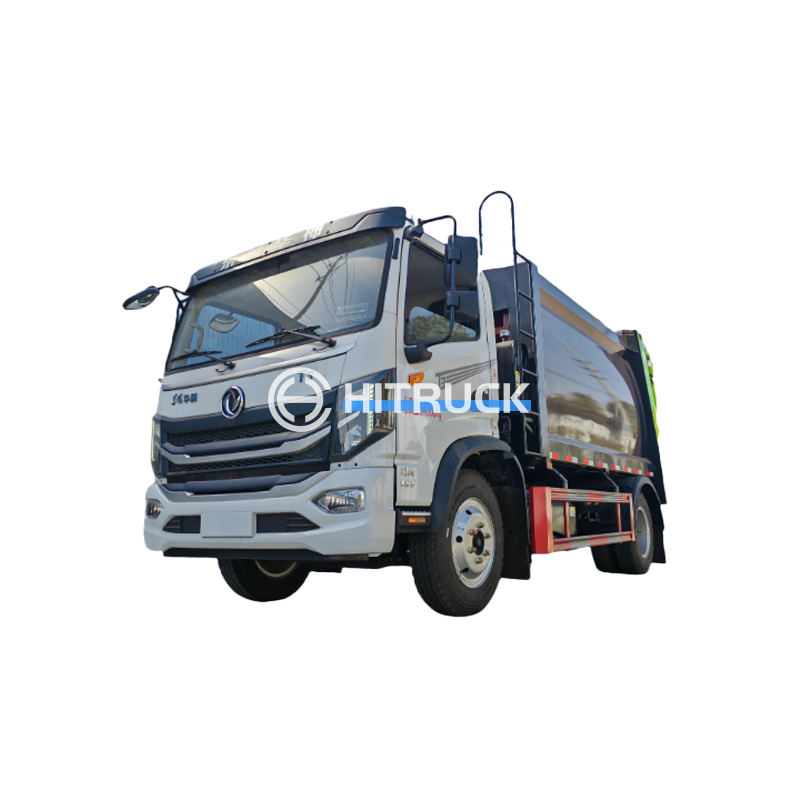

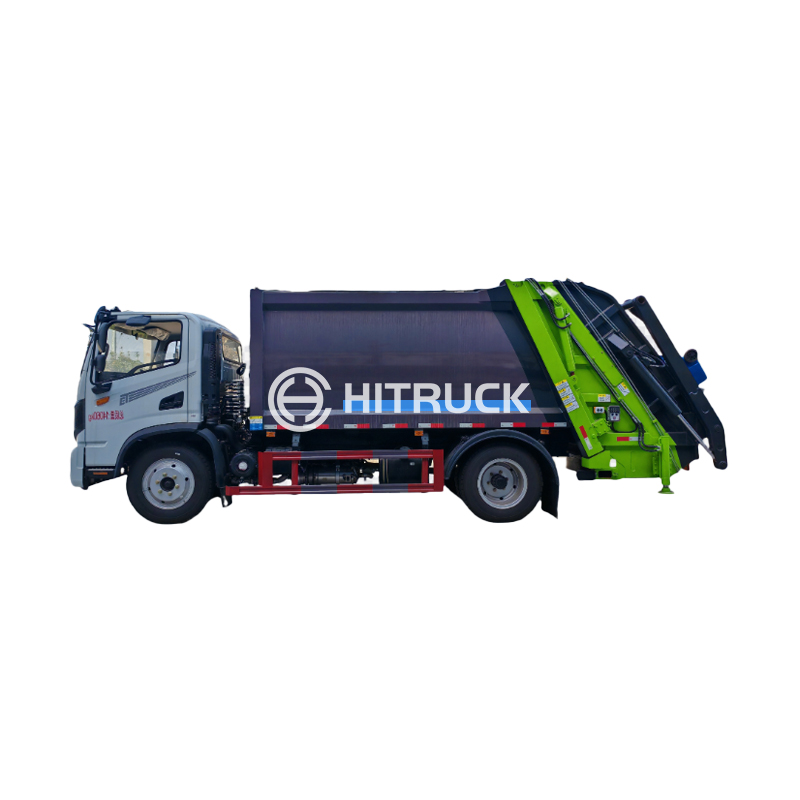

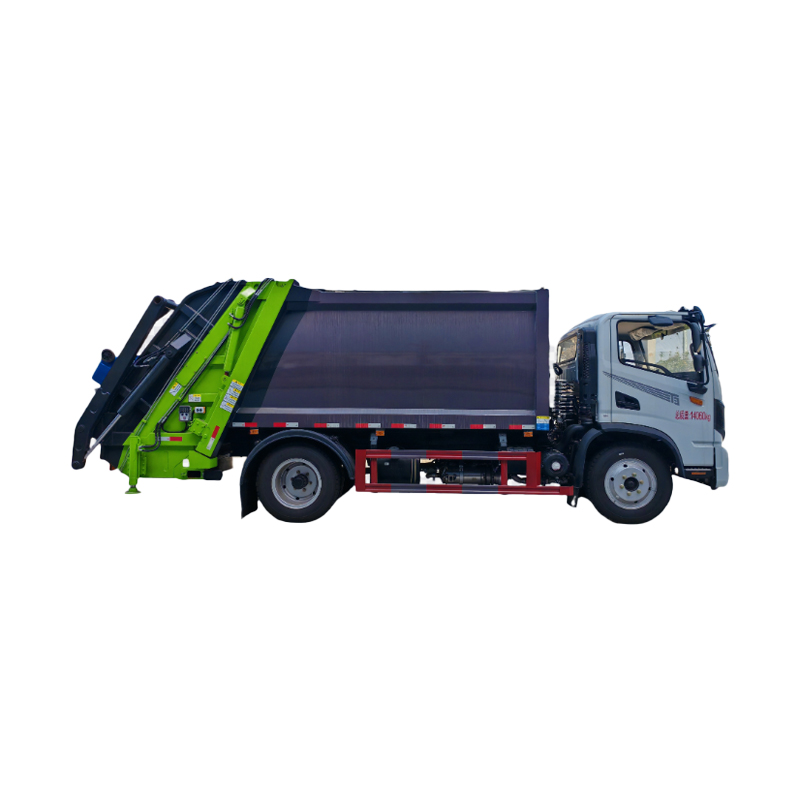

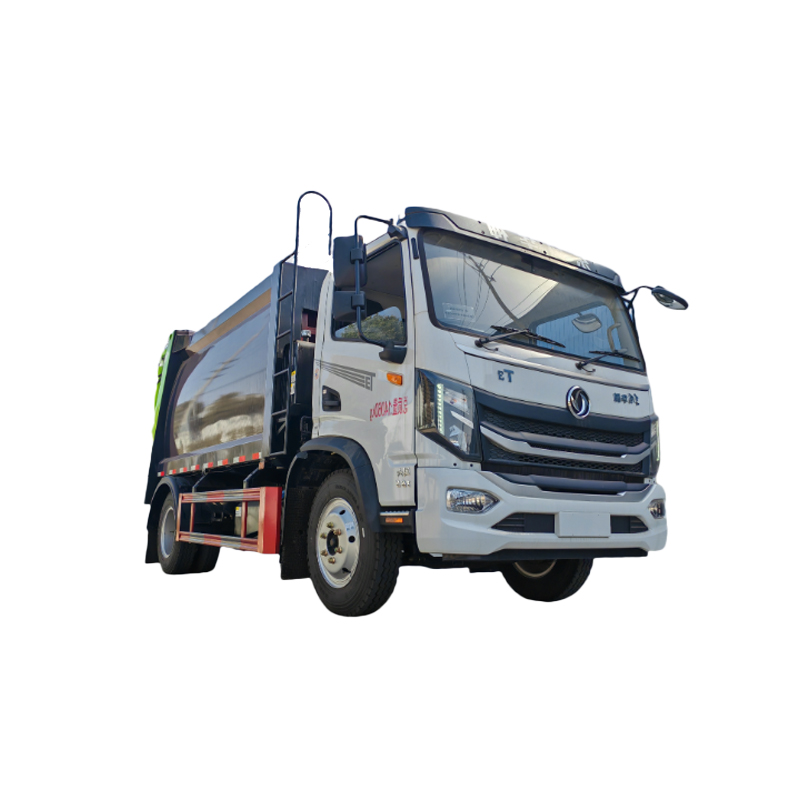

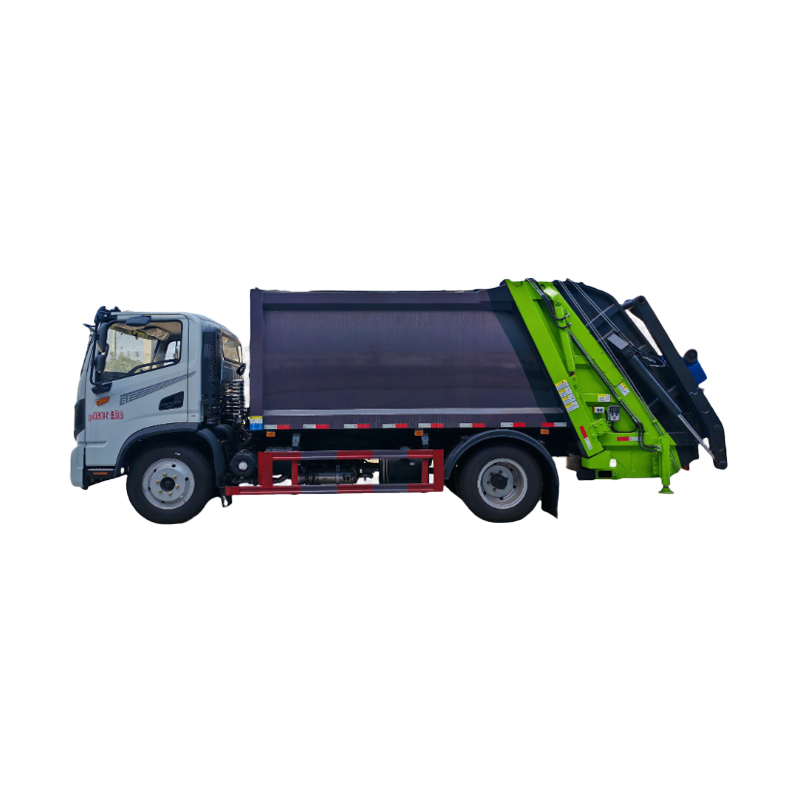

Model：GTY5140ZYS6 Chassis type：EQ1146TL6DJ1 Axis pitch：3800mm Engine：Yuchai 165hp total mass：14060kg Service weight (kg)：8100,7865,7650kg Rated mass (kg)：5765,6000,6215kg Overall dimensions (mm)：7850,7670,7730,7550×2450,2350×3300,3200mm Volume：10/12m3 Filler volume:1.7m3 Chassis confi...
Model：GTY5140ZYS6
Chassis type：EQ1146TL6DJ1
Axis pitch：3800mm
Engine：Yuchai 165hp
total mass：14060kg
Service weight (kg)：8100,7865,7650kg
Rated mass (kg)：5765,6000,6215kg
Overall dimensions (mm)：7850,7670,7730,7550×2450,2350×3300,3200mm
Volume：10/12m3
Filler volume:1.7m3

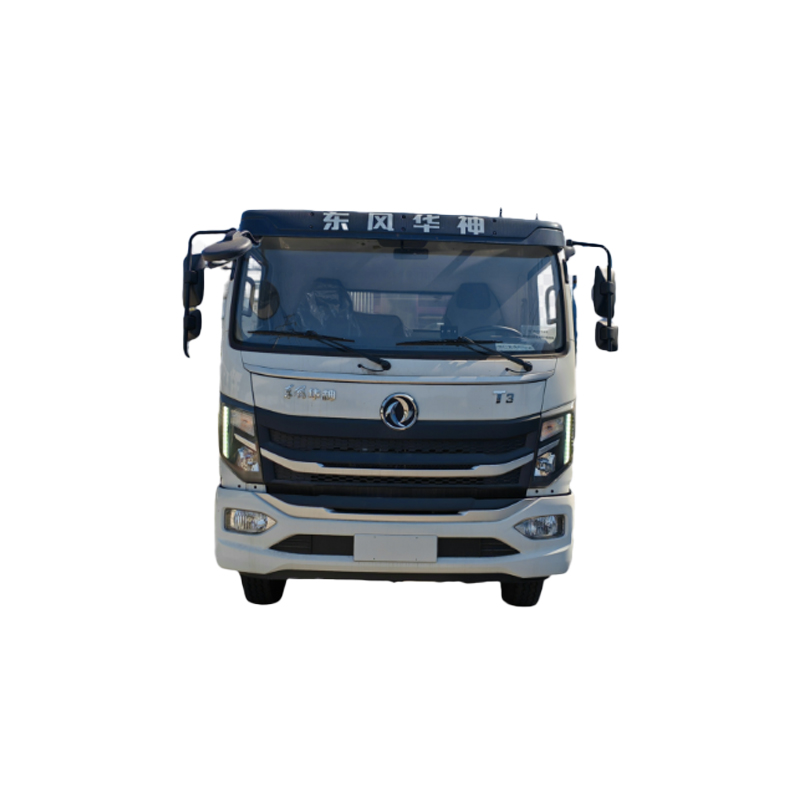

Dongfeng new generation special chassis, wheelbase 3800, new [T3] single row cab, engine Yuchai 165 horsepower, Wan Li Yang 6/8 transmission, 8.25R20 steel wire tires, front and rear axle 2.4/6, 190 double girder, rotation, clutch power, air brake, Air conditioning, electric window, central lock, ABS, multi-function steering wheel (cruise control, Bluetooth connection), air bag seat.

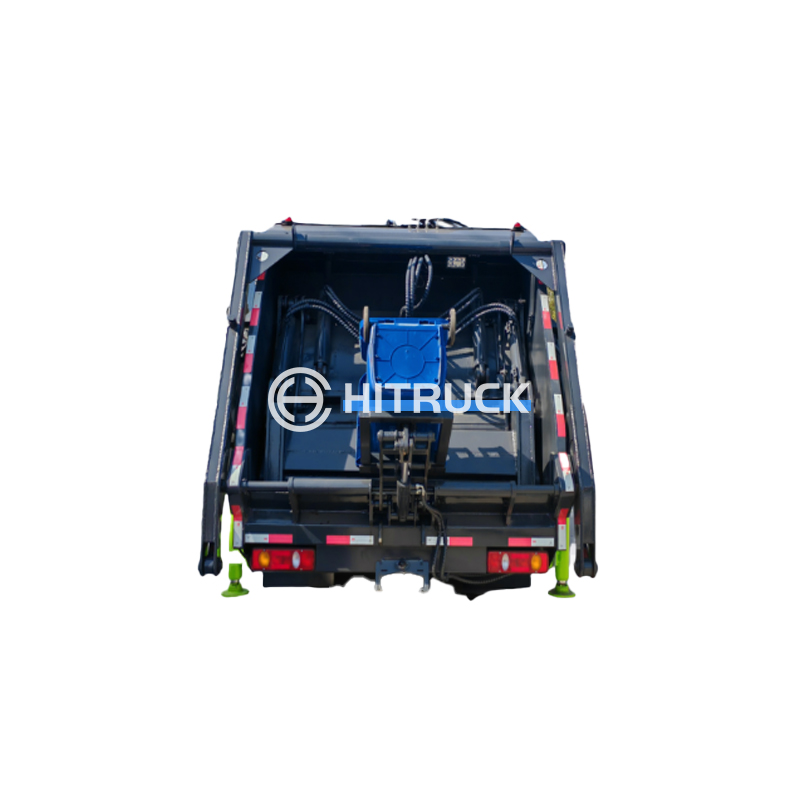

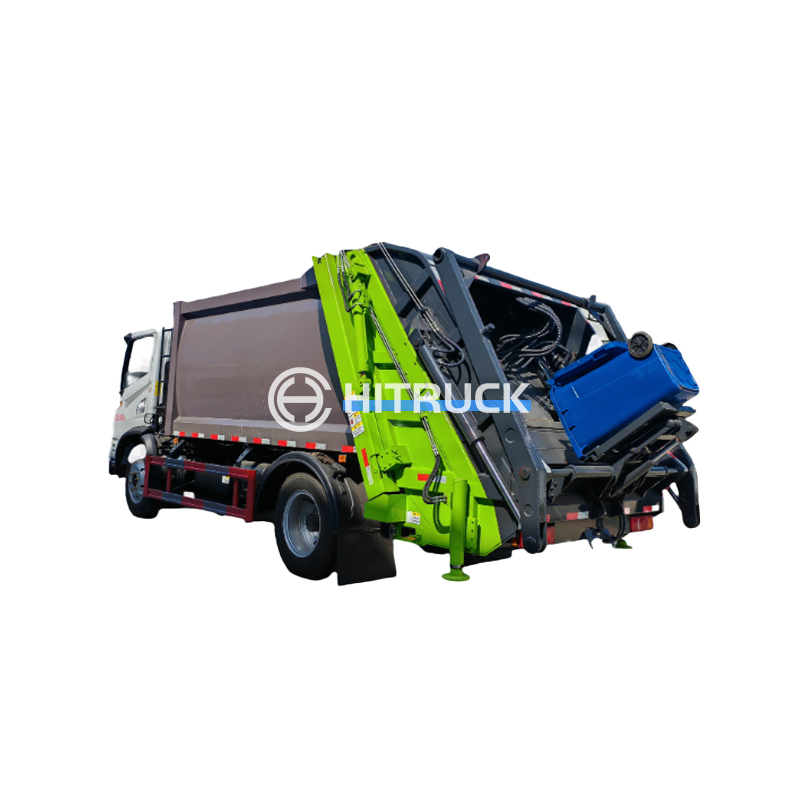

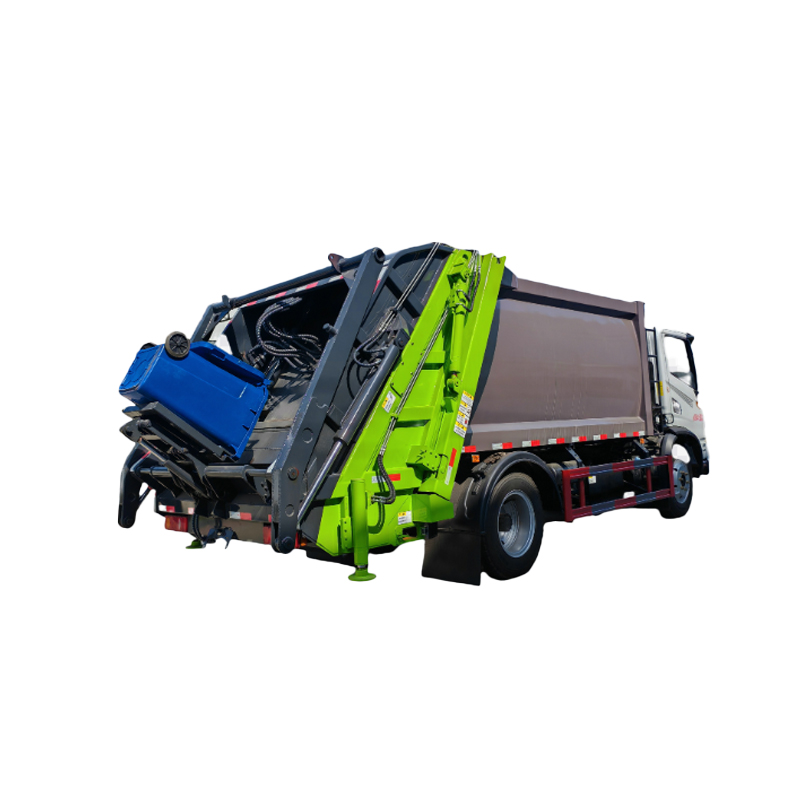

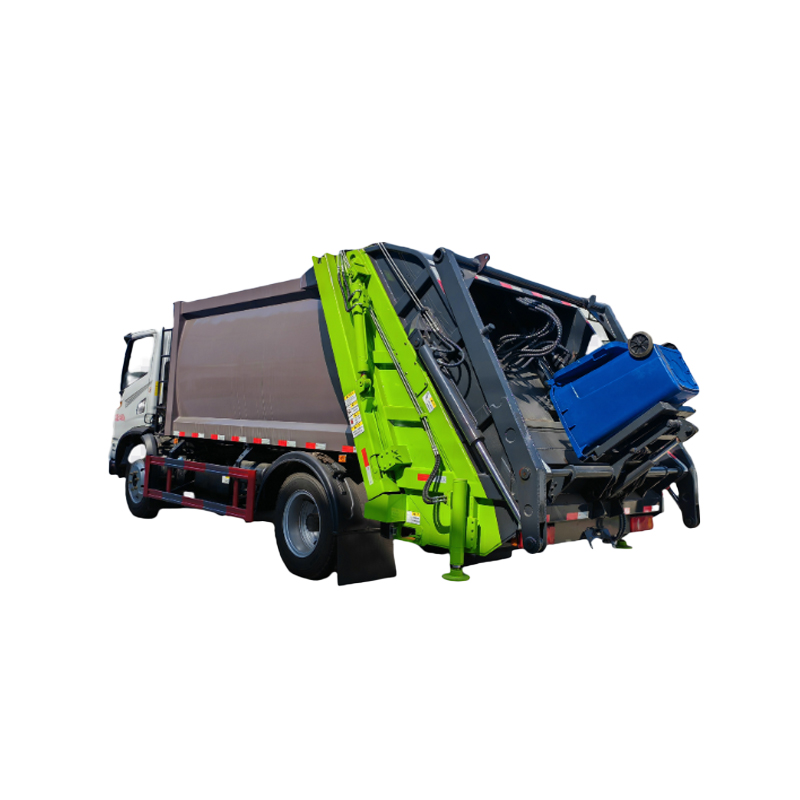

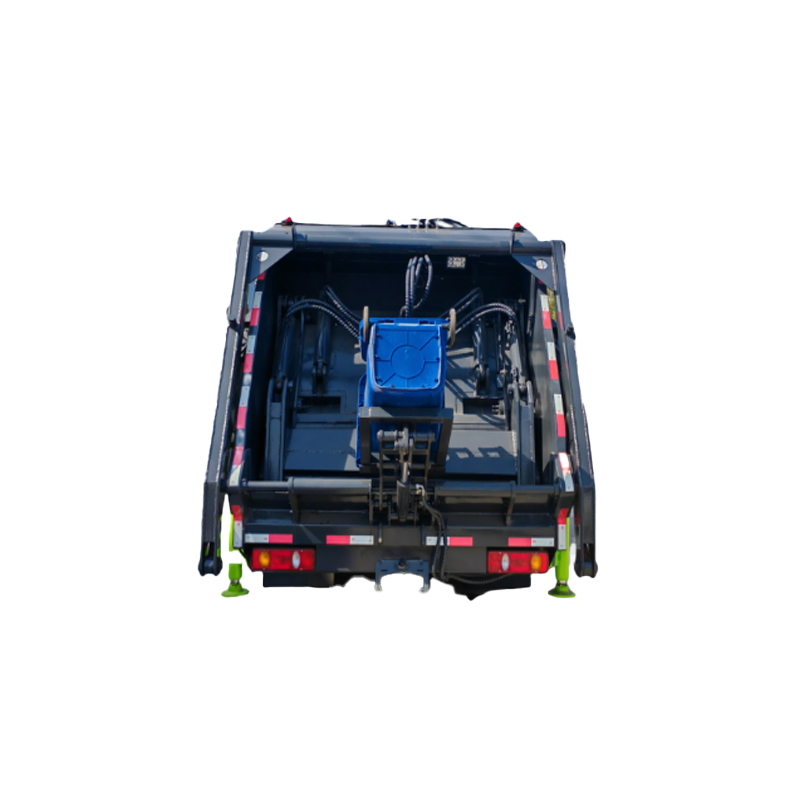

Adopt Q345 manganese steel high strength plate curved box, side 4 bottom 5, by the body, loading mechanism, compression mechanism, discharge mechanism, oil pump, cylinder, control valve and other components of the hydraulic mechanism, bidirectional peristaltic compression, loading mechanism by the bracket, connecting rod mechanism, CAM, hook, etc., can be hung 120L or 240L double barrel. Domestic well-known brand hydraulic system (Anhui Anhui liquid pump, Zhongmei multi-way valve, constant force custom cylinder, Zhejiang Jiashan force extractor); Centralized electronic control system of the same type CAN bus in the cab and outside the body; Body high profile light/side light/job light, standard wireless remote control and pressure doubling valve more convenient operation
