Model：GTY5040ZYS6 Chassis type：HFC1045P32K1C7NS-Z Axis pitch：2850mm Engine：Yunnei 140马力 total mass：4485kg Service weight (kg)：3855kg Rated mass (kg)：500kg Overall dimensions (mm)：5995×2080,2160×2200,2400,2600mm Volume：6m3 Filler volume：0.9m3 Chassis configuration : Chassis adopts J...

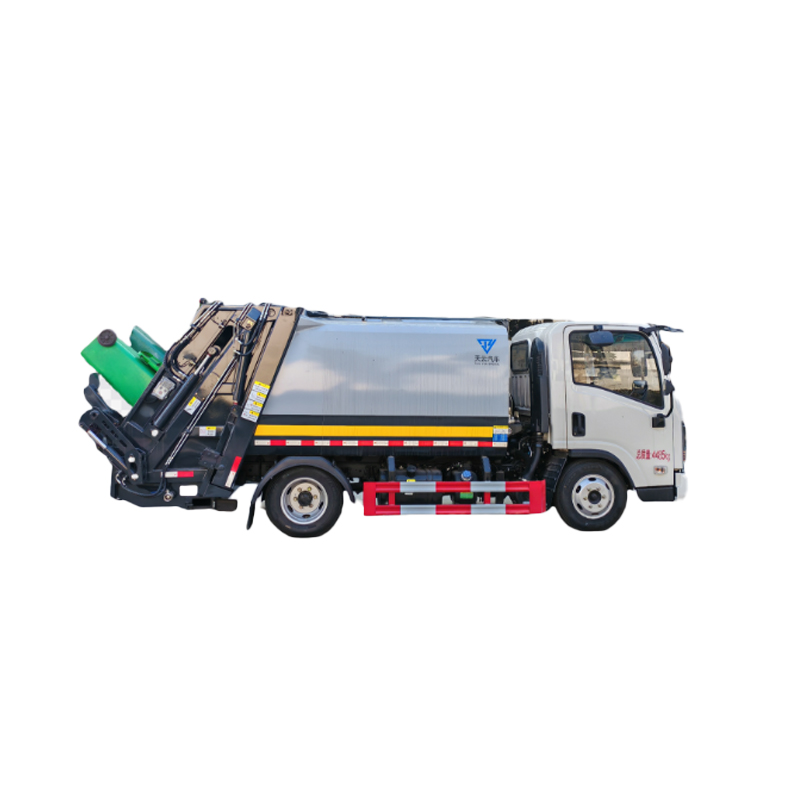

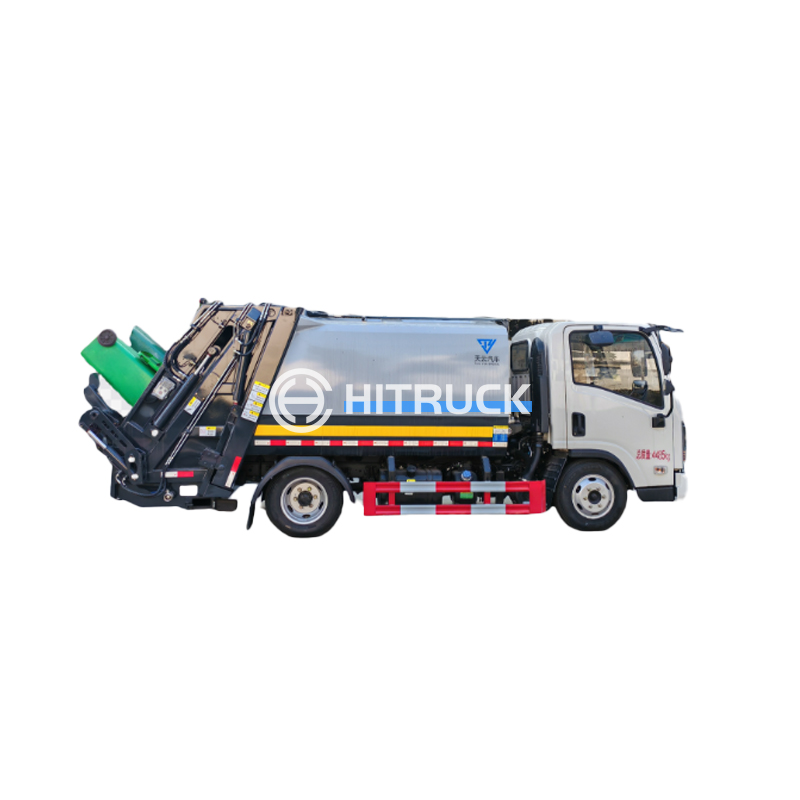

Model：GTY5040ZYS6
Chassis type：HFC1045P32K1C7NS-Z
Axis pitch：2850mm
Engine：Yunnei 140马力
total mass：4485kg
Service weight (kg)：3855kg
Rated mass (kg)：500kg
Overall dimensions (mm)：5995×2080,2160×2200,2400,2600mm
Volume：6m3
Filler volume：0.9m3

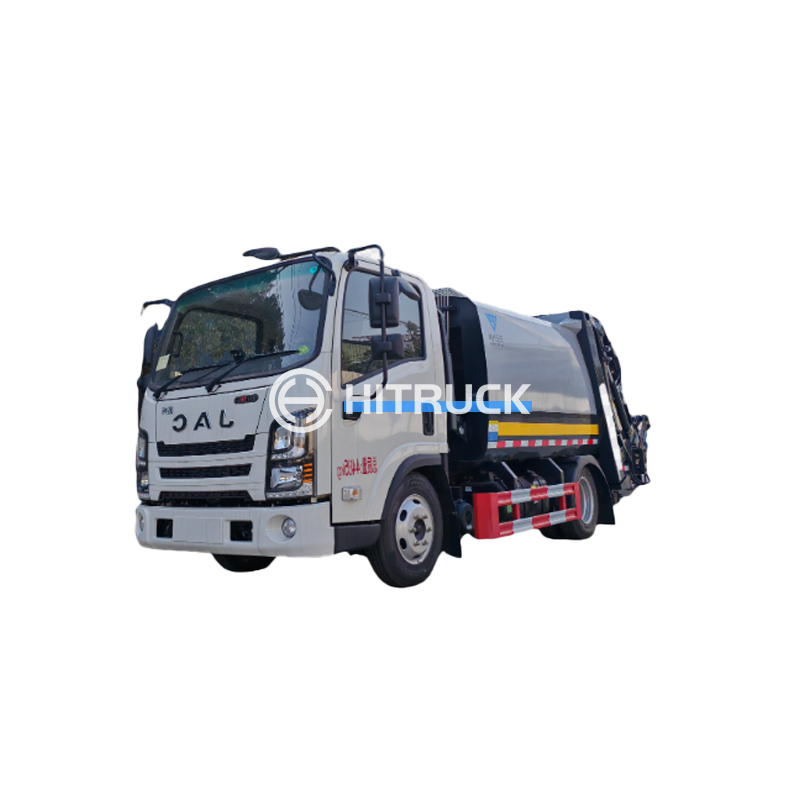

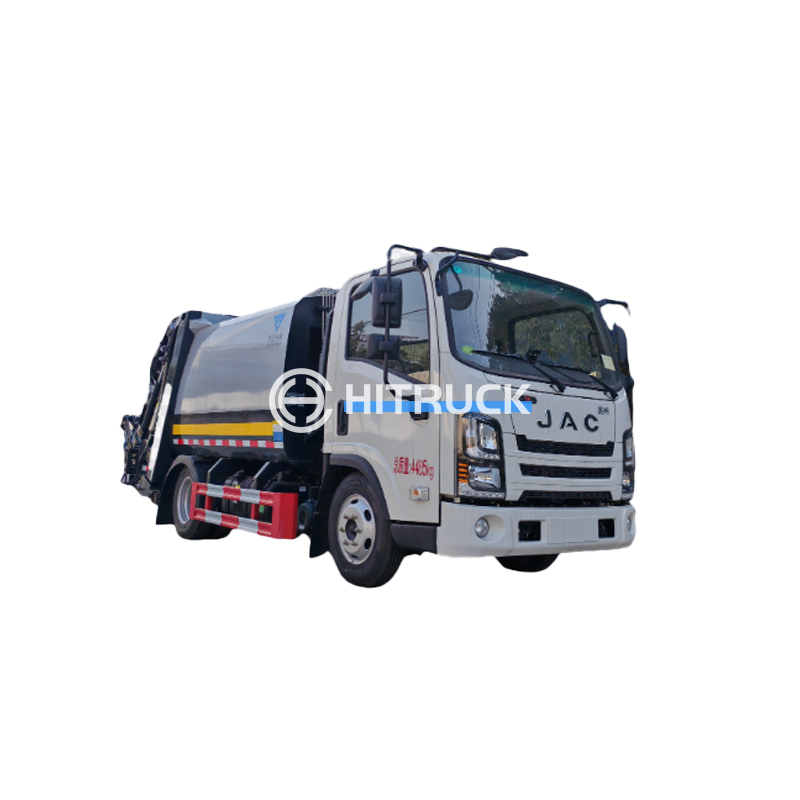

Chassis adopts Jianghuai Weiling K3 cab, three seats, Yunnei 140 horsepower engine, Wanliyang 5 speed transmission, 6.50 steel tire (8PR), 2850 wheelbase, (N20) Reversible,4.875, pneumatic drum, air brake, rotation, air conditioning, electric doors and Windows,MP3 player, central lock, steering wheel (entertainment and cruise key module), less spring, daytime running lights, winter oil, spring 4/3+2.

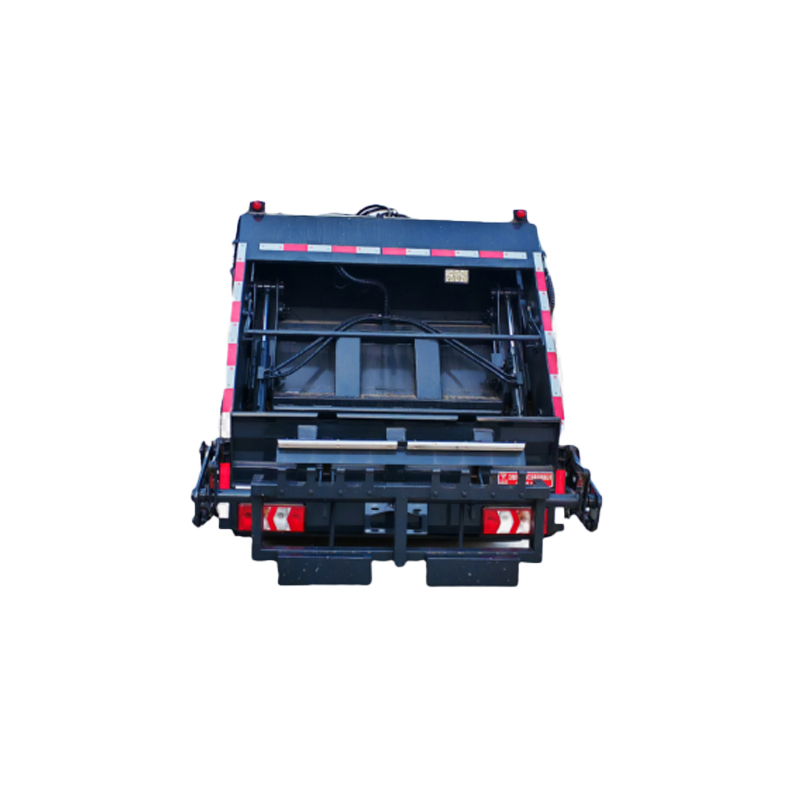

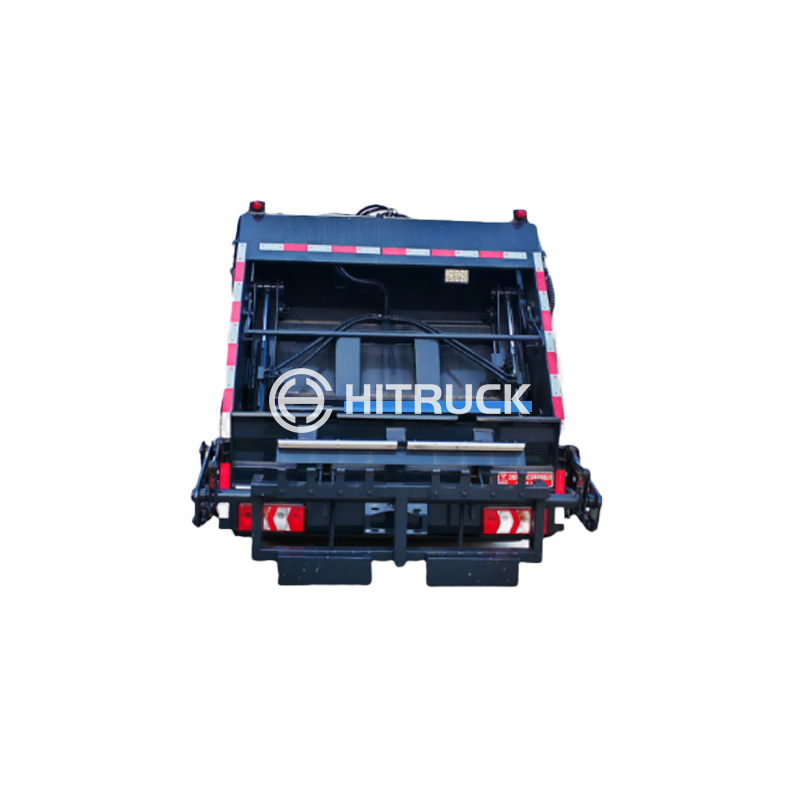

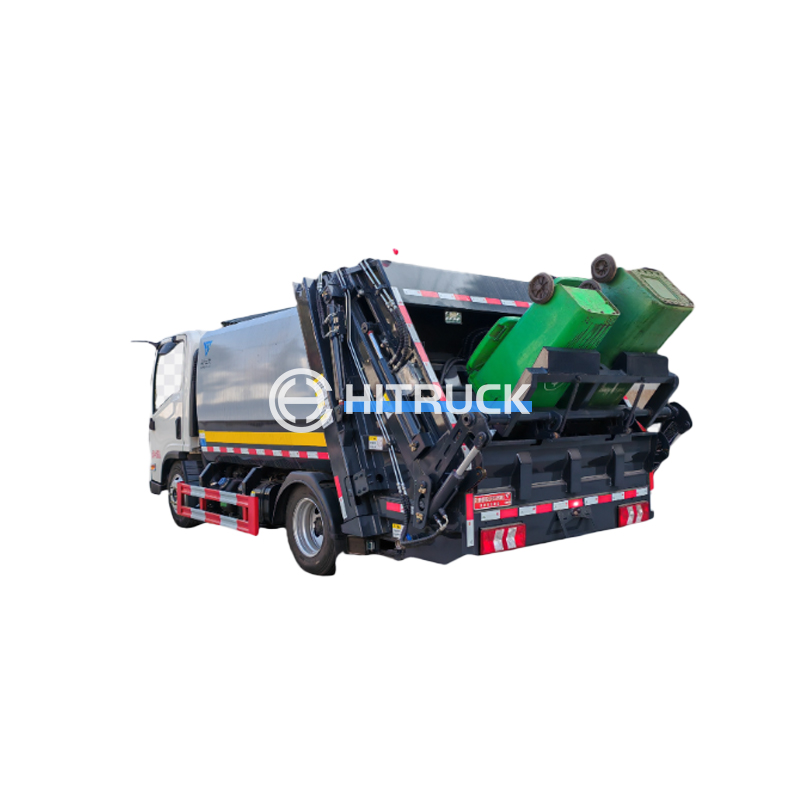

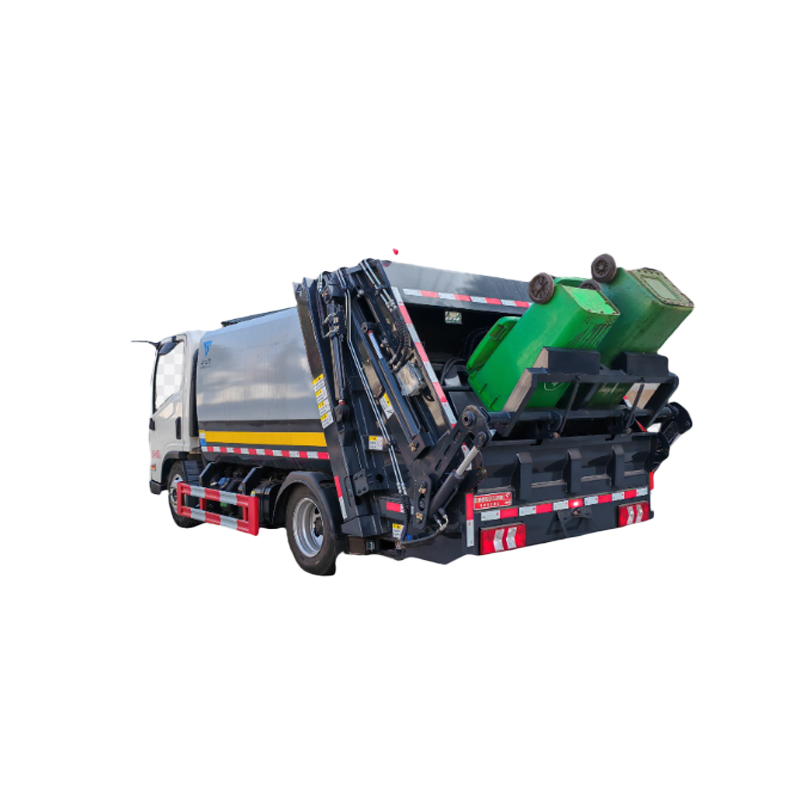

T700 high strength board curved box, side 2 bottom 3 lightweight design. The hydraulic mechanism is composed of body, charging mechanism, compression mechanism, unloading mechanism, oil pump, oil cylinder, control valve and so on. The charging mechanism is composed of bracket, connecting rod mechanism, CAM, hook, etc., and bidirectional peristaltic compression. Domestic well-known brand hydraulic system (Anhui Anhui liquid pump, Hunan Changsha domestic well-known multi-way valve, compression special custom cylinder, Zhejiang Jiashan force extractor); Centralized electronic control system of the same type CAN bus in the cab and outside the body; High body profile light/side light/working light
