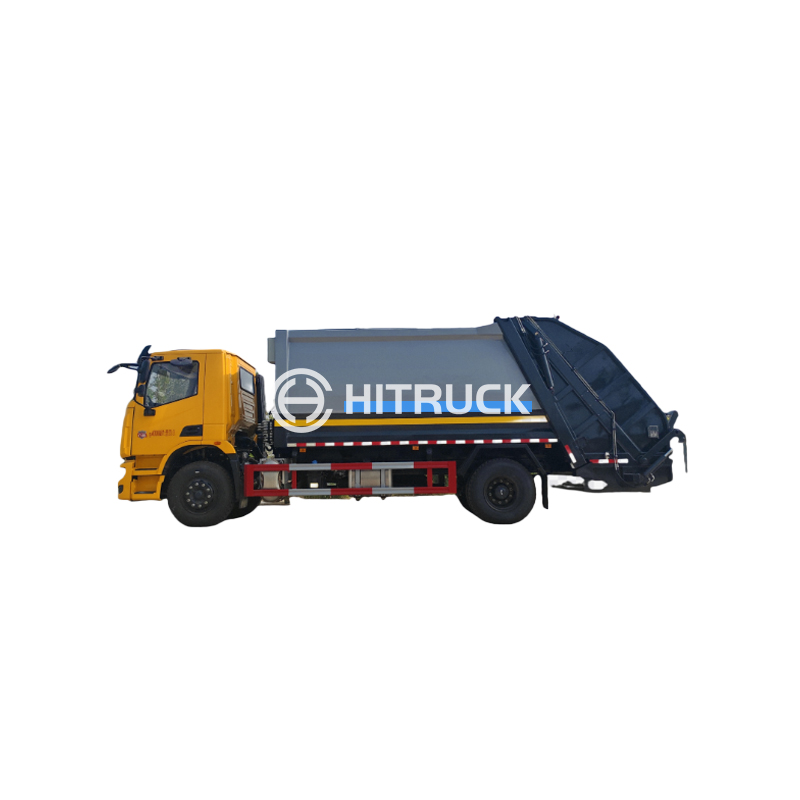

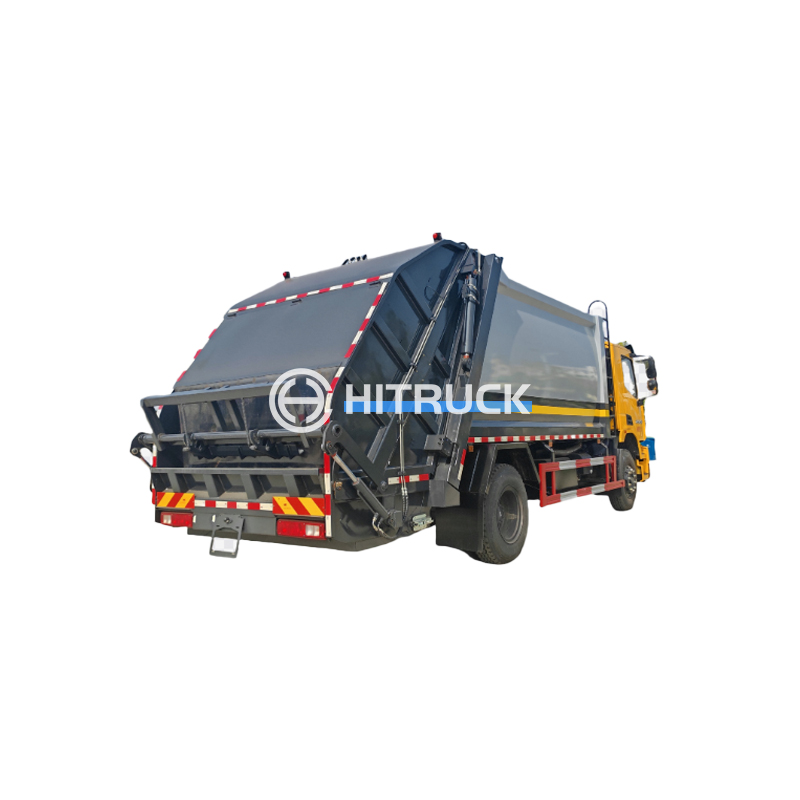

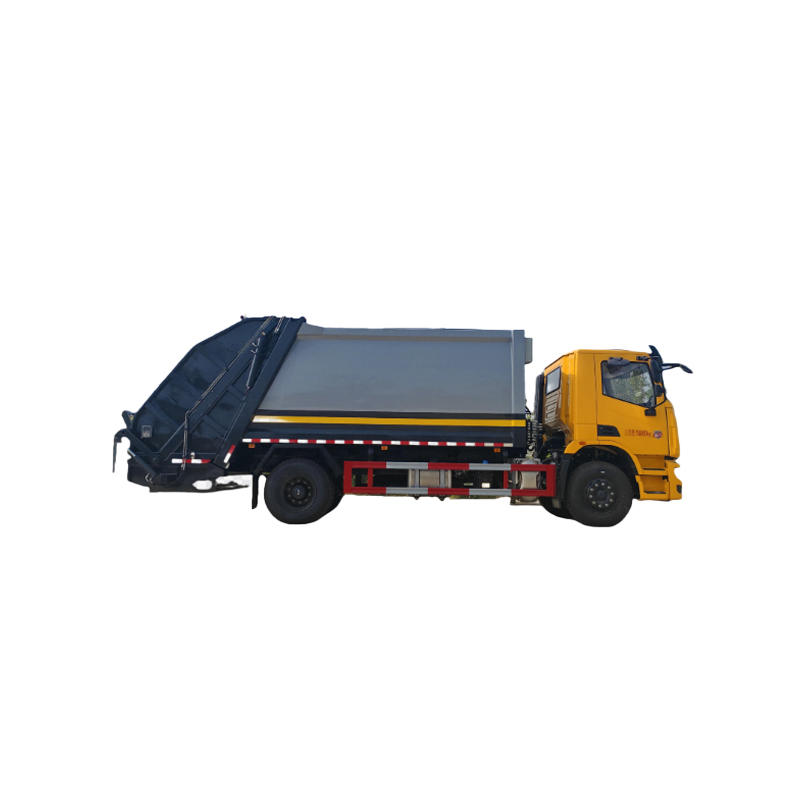

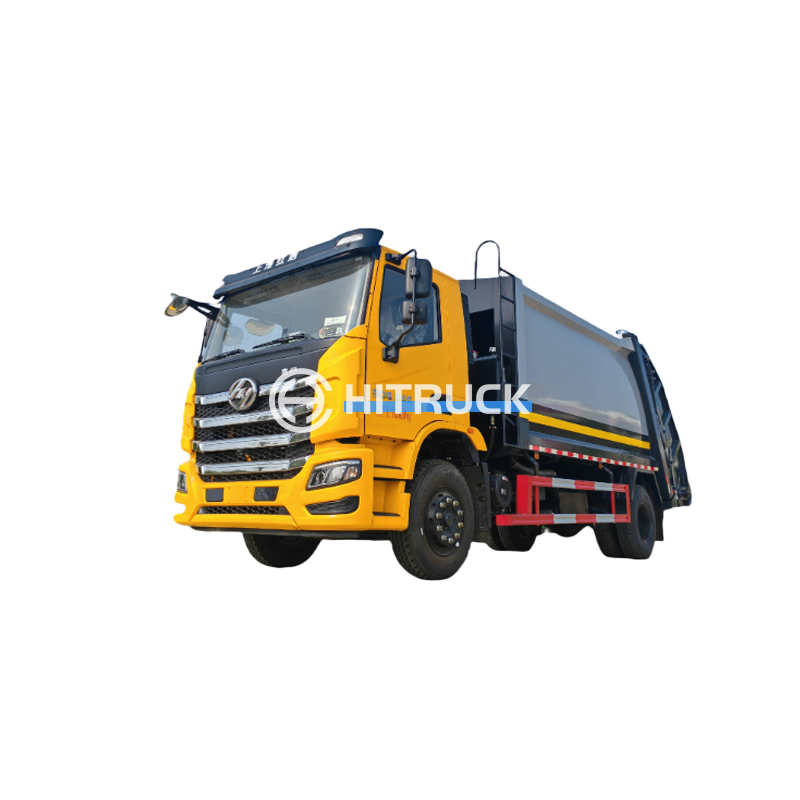

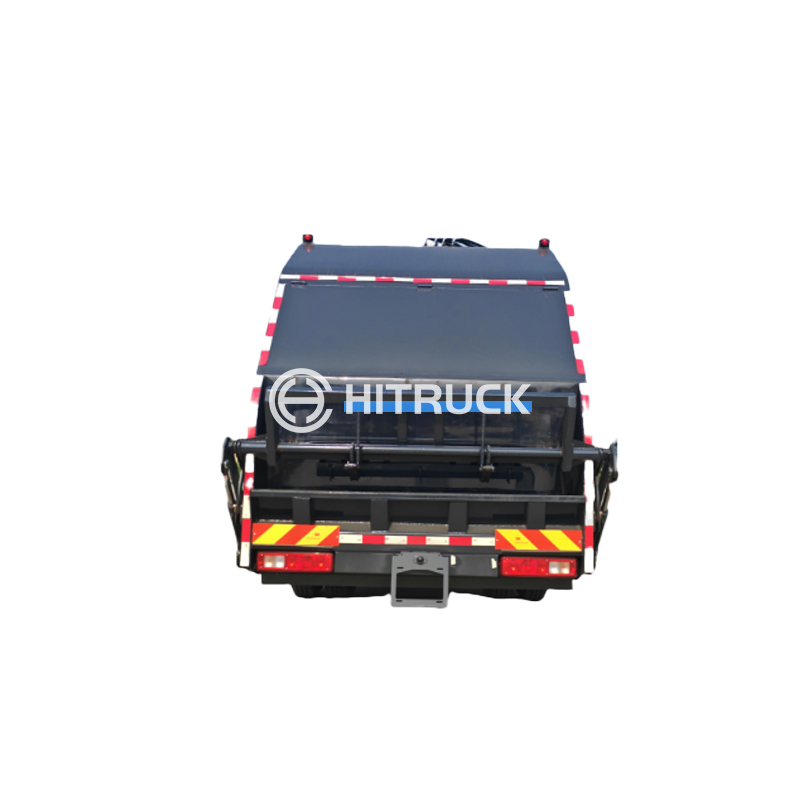

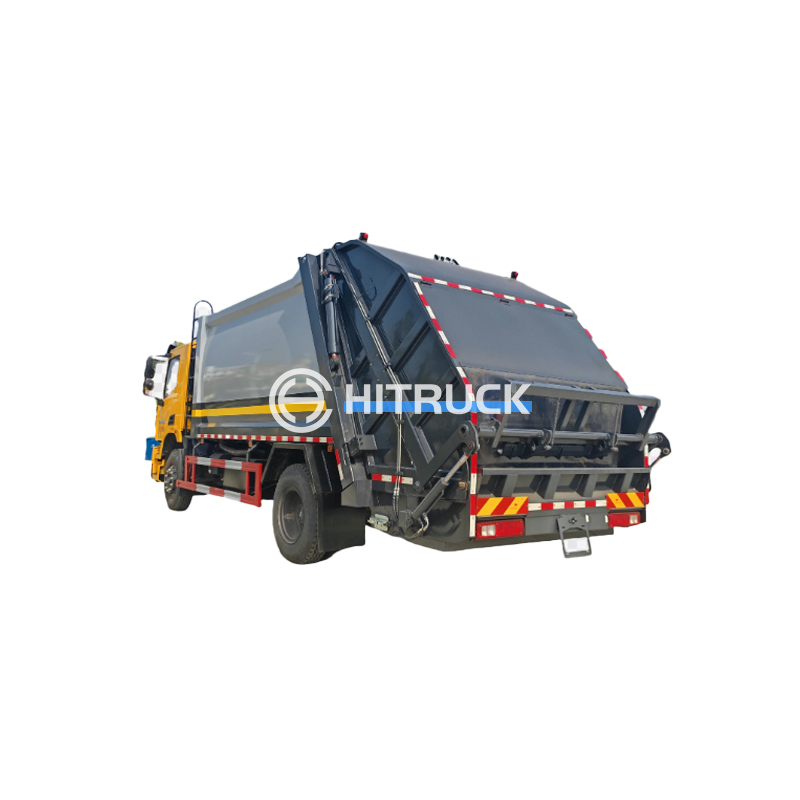

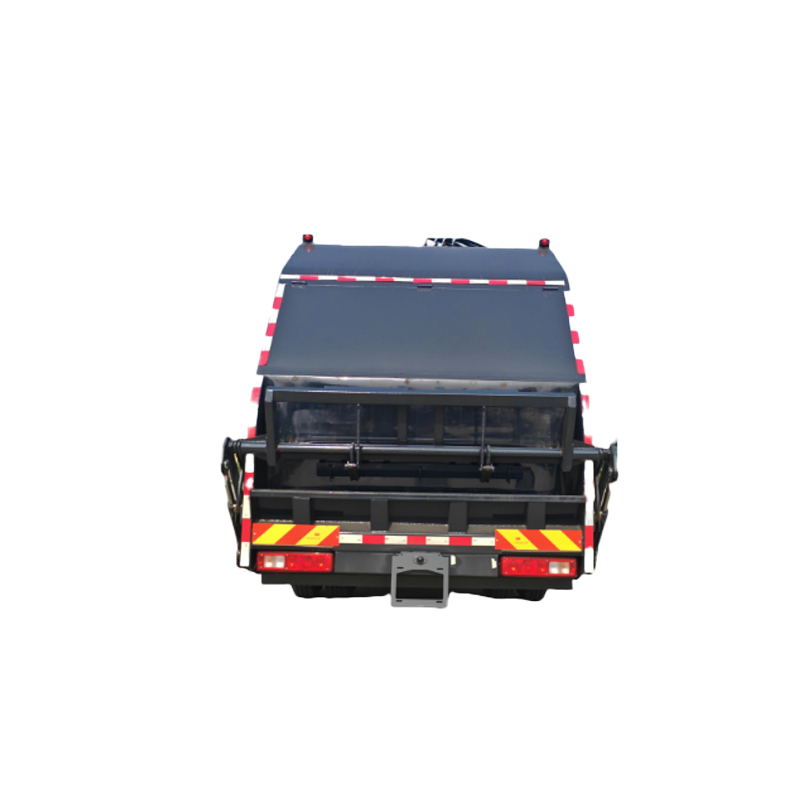

Model：GTY5185ZYS6CQ Chassis type：CQ1187ES1J Axis pitch：4700mm Engine：Yuchai 245hp total mass：18000kg Service weight (kg)：12500,12000,11400kg Rated mass (kg)：5370,5305,5870,5805,6470,6405kg Overall dimensions (mm)：9030,8950,×2550,2500×3450,3400mm Volume：16m3 Filler volume：2.4m3 Chassi...

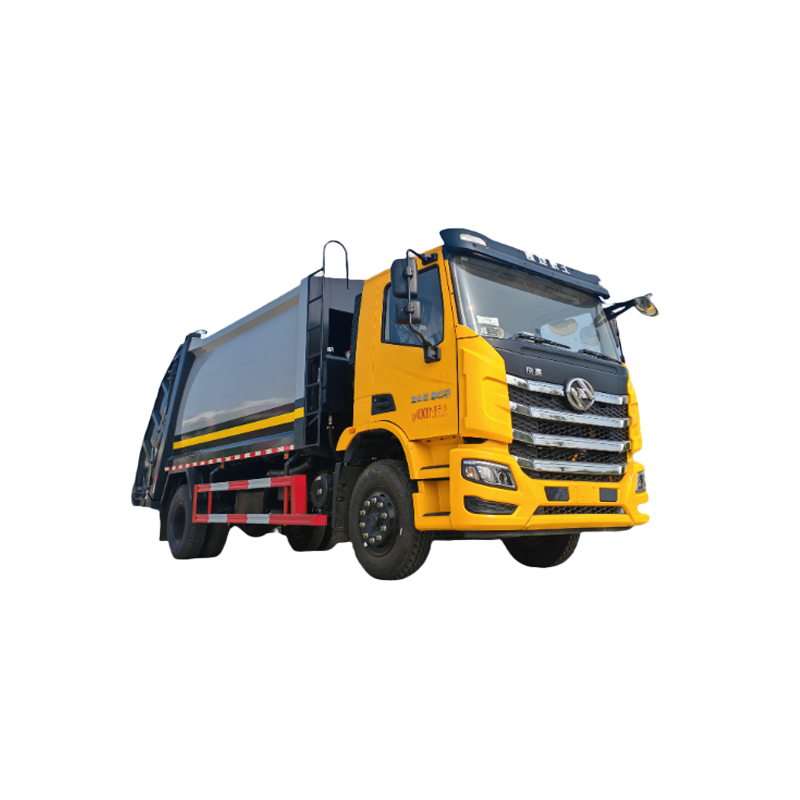

Model：GTY5185ZYS6CQ
Chassis type：CQ1187ES1J
Axis pitch：4700mm
Engine：Yuchai 245hp
total mass：18000kg
Service weight (kg)：12500,12000,11400kg
Rated mass (kg)：5370,5305,5870,5805,6470,6405kg
Overall dimensions (mm)：9030,8950,×2550,2500×3450,3400mm
Volume：16m3
Filler volume：2.4m3

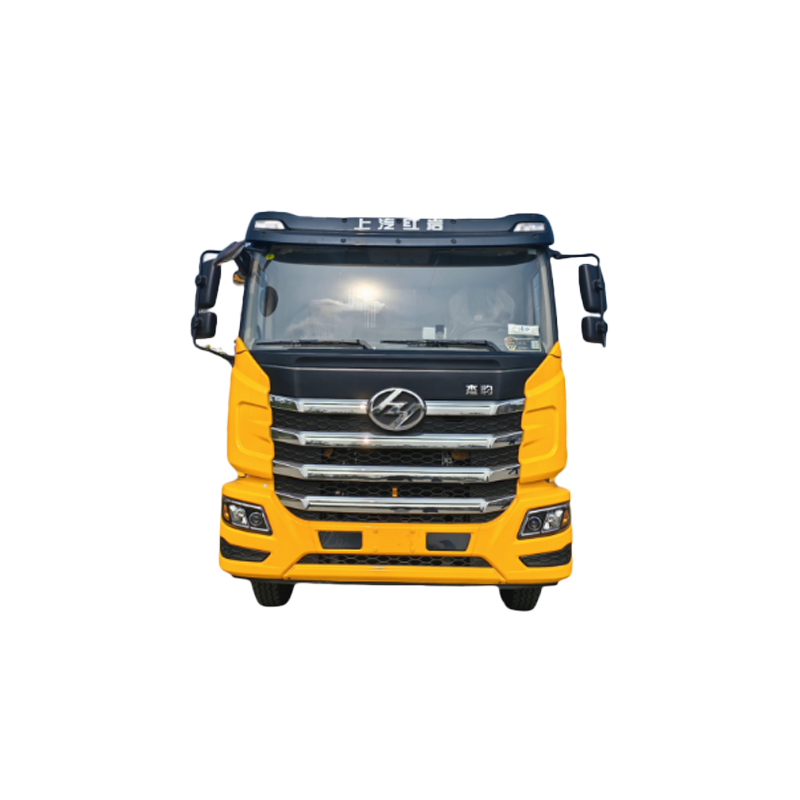

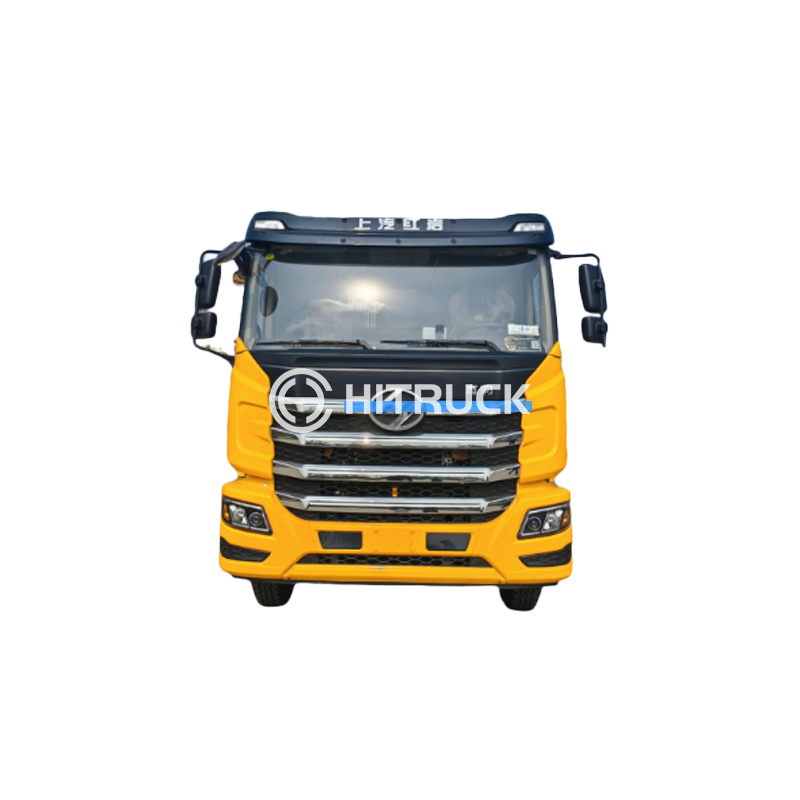

Adopts the special chassis of Shanghai Qi Hongyan sanitation vehicle, chassis model: CQ1187ES1J, [low top height engine cover short] Jebao H series cab (2.3m wide), chassis wheelbase: 4700mm, cab spring hydraulic shock suspension, cab manual rotation, driver's seat, air seat, extended manual rearview mirror, Yuchai S06245 country six [YCS06245-60/60A] engine, FAster [8JS95E-C] iron shell overdrive transmission, [4.875] ratio, front axle 4.5 tons, HY400 single-stage deceleration welding bridge (26000N.m)9 tons rear axle, frame: 940/865x250/7+4 (double deck), rear suspension spring 10+8 pieces, 10.00R20 PR18 mixed pattern, 200L square aluminum alloy fuel tank. Rear suspension length 2580mm, original air conditioning, multi-function steering wheel, constant speed cruise, airbag seat, ABS, driving recorder, central control lock, electric glass, remote control key.

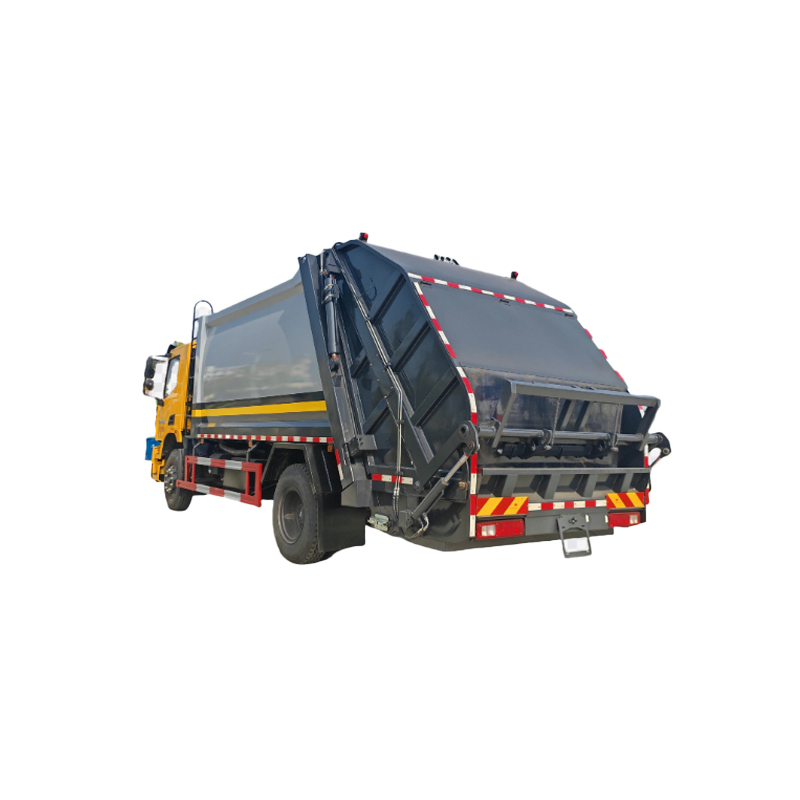

Adopts Q345 manganese steel high-strength curved box, side 5 bottom 6, by the body, charging mechanism, compression mechanism, discharge mechanism, oil pump, cylinder, control valve and other hydraulic mechanism composition, two-way peristaltic compression, charging mechanism by the bracket, connecting rod mechanism, CAM, hook, etc., can be hung 120L or 240L double barrel. With pneumatic seal cover, with wireless remote control and pressure doubling valve operation is more convenient, domestic well-known brand hydraulic system (Anhui Anhui liquid pump, Zhongmei multi-way valve, Hengli custom cylinder, Zhejiang Jiashan force extractor
