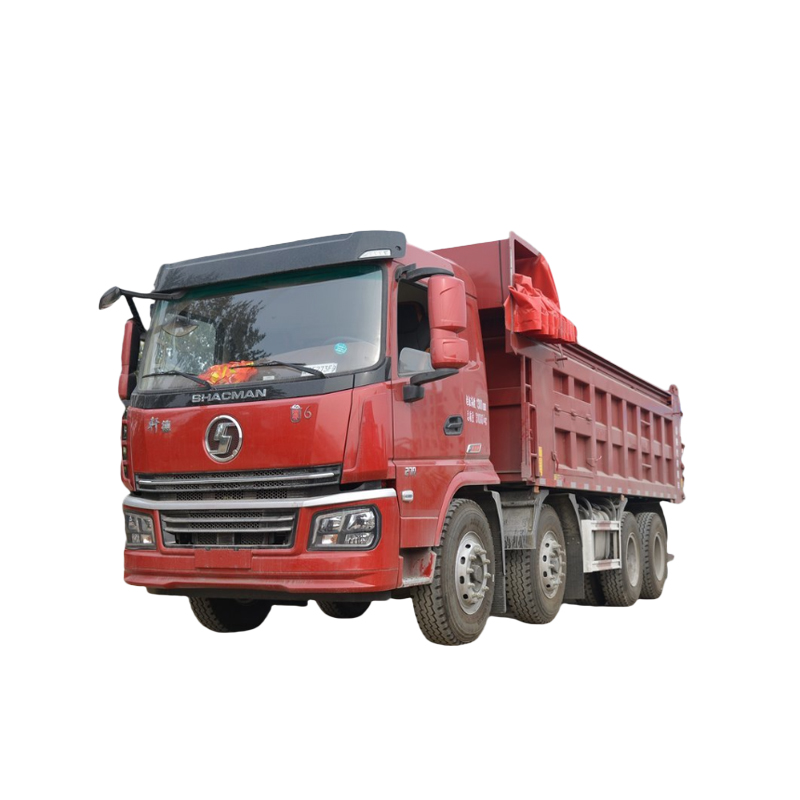

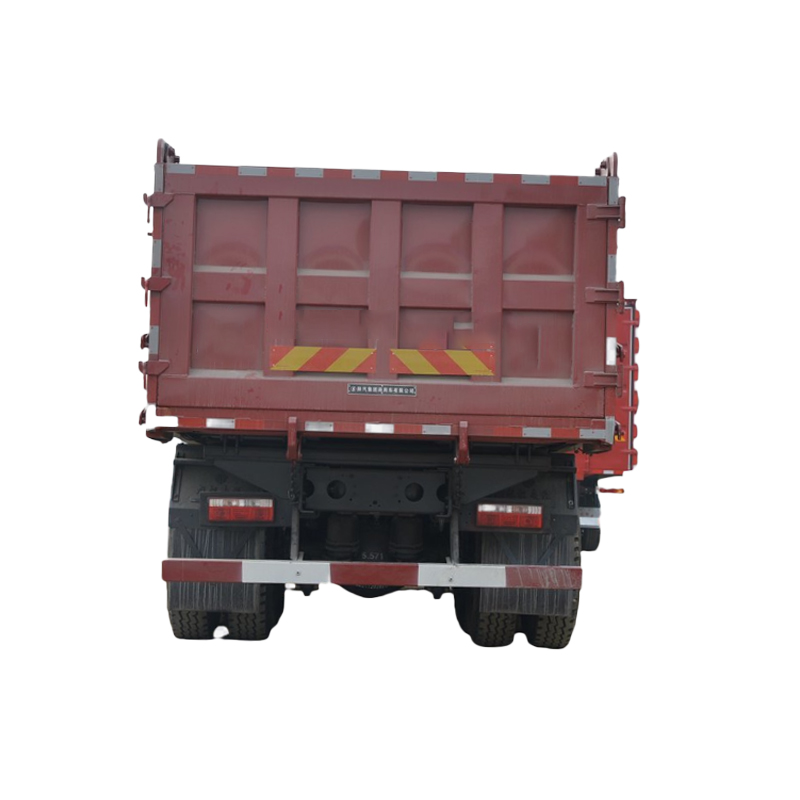

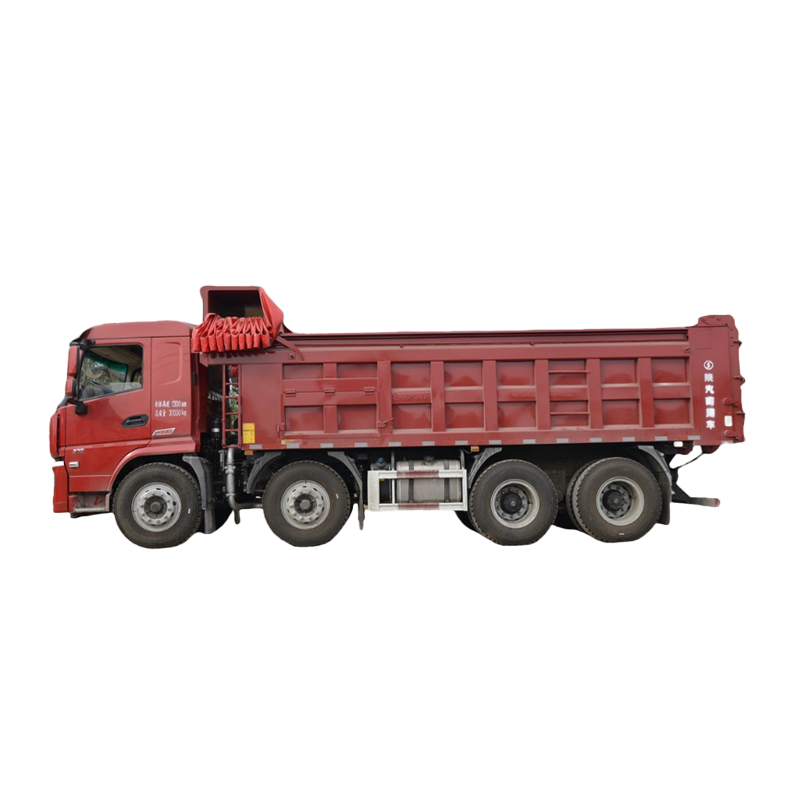

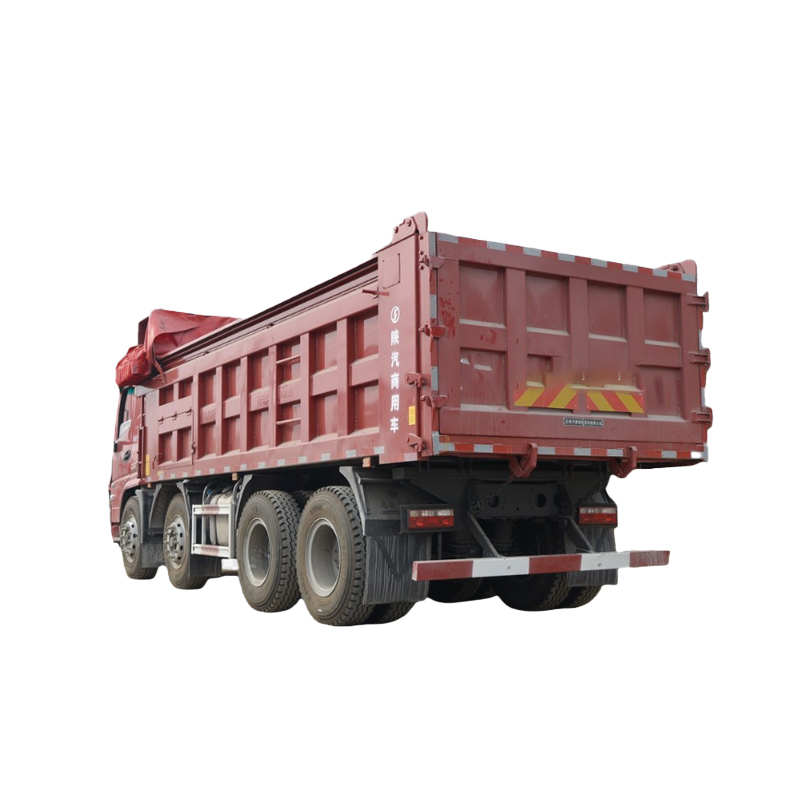

Essential information Driving licence A1,A2,B2 Product model SX3310MP6306 Driving form 8X4 Wheel base 1800+3175+1400mm Engine Commins X12NS6B400 Speed changing box Faust 12JSDX220T-B Rear axle speed ratio 5.262 Overall dimensions (mm) 9700x2550x3175 Front ...
| Driving licence | A1,A2,B2 | Product model | SX3310MP6306 |
| Driving form | 8X4 | Wheel base | 1800+3175+1400mm |
| Engine | Commins X12NS6B400 | Speed changing box | Faust 12JSDX220T-B |
| Rear axle speed ratio | 5.262 | Overall dimensions (mm) | 9700x2550x3175 |
| Front wheel base (mm) | 2070/2070mm | Rear wheel base (mm) | 1900/1900mm |
| Service weight (Kg) | 15500 | Rated load（kg） | 15370 |
| Total weight (Kg) | 31000 | Approach Angle/Departure Angle (°) | 17/23 |
| Type of fuel | Diesel |
| Standard: Cab: 5-inch color LCD combined instrument, Bluetooth player (with 5-inch screen), Tianxing Health smart version BD vehicle terminal, pole rearview mirror, halogen headlights, no cursor emblem, shading. Chassis: desert air filter, with tank under protection, 165Ah maintenance-free battery, lower exhaust, axle waterproof, front traction pin device, rear traction seat, with front protection, with spare tire, with in-cylinder brake; Optional: Cab: integral rearview mirror, LED headlights, hair cursor emblem, electric flip.Chassis :180Ah maintenance-free battery, 12.00R20/18PR mine-pattern tire, oil bath air filter |
